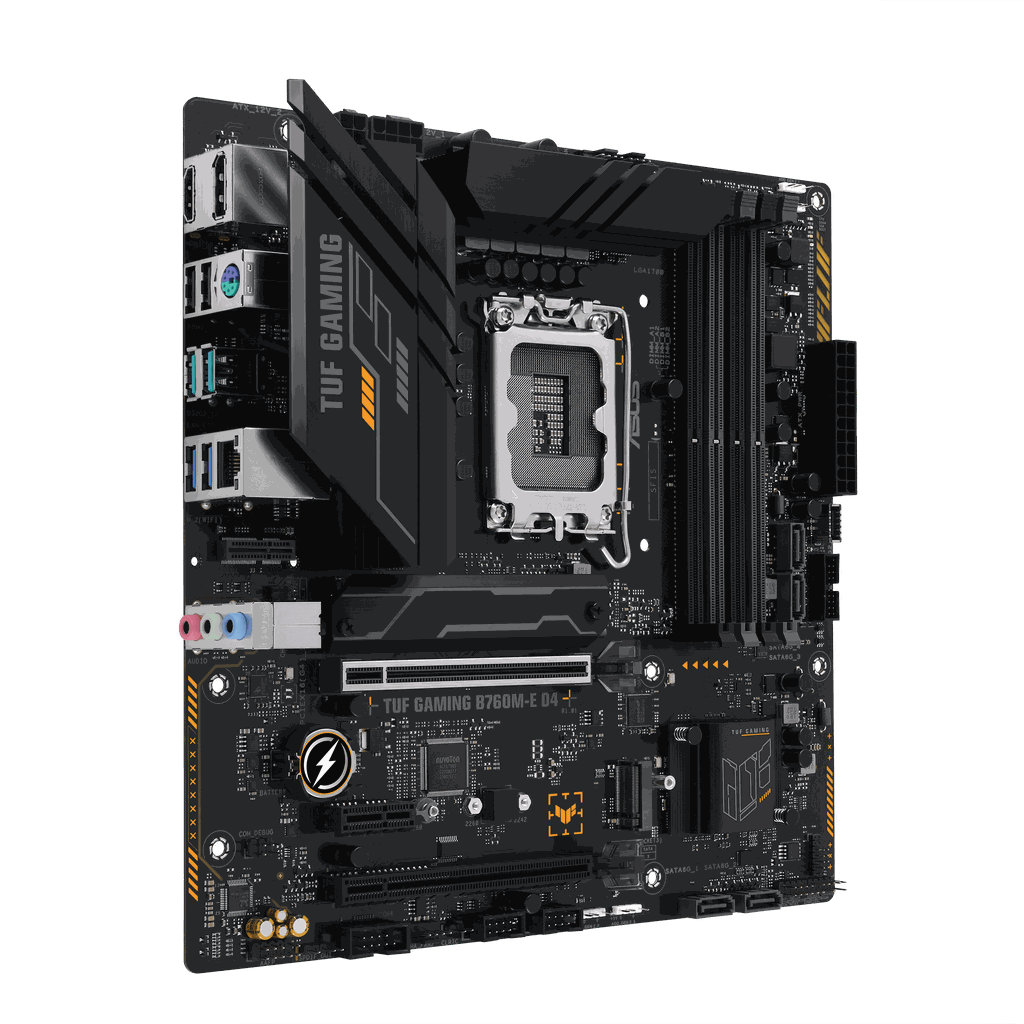

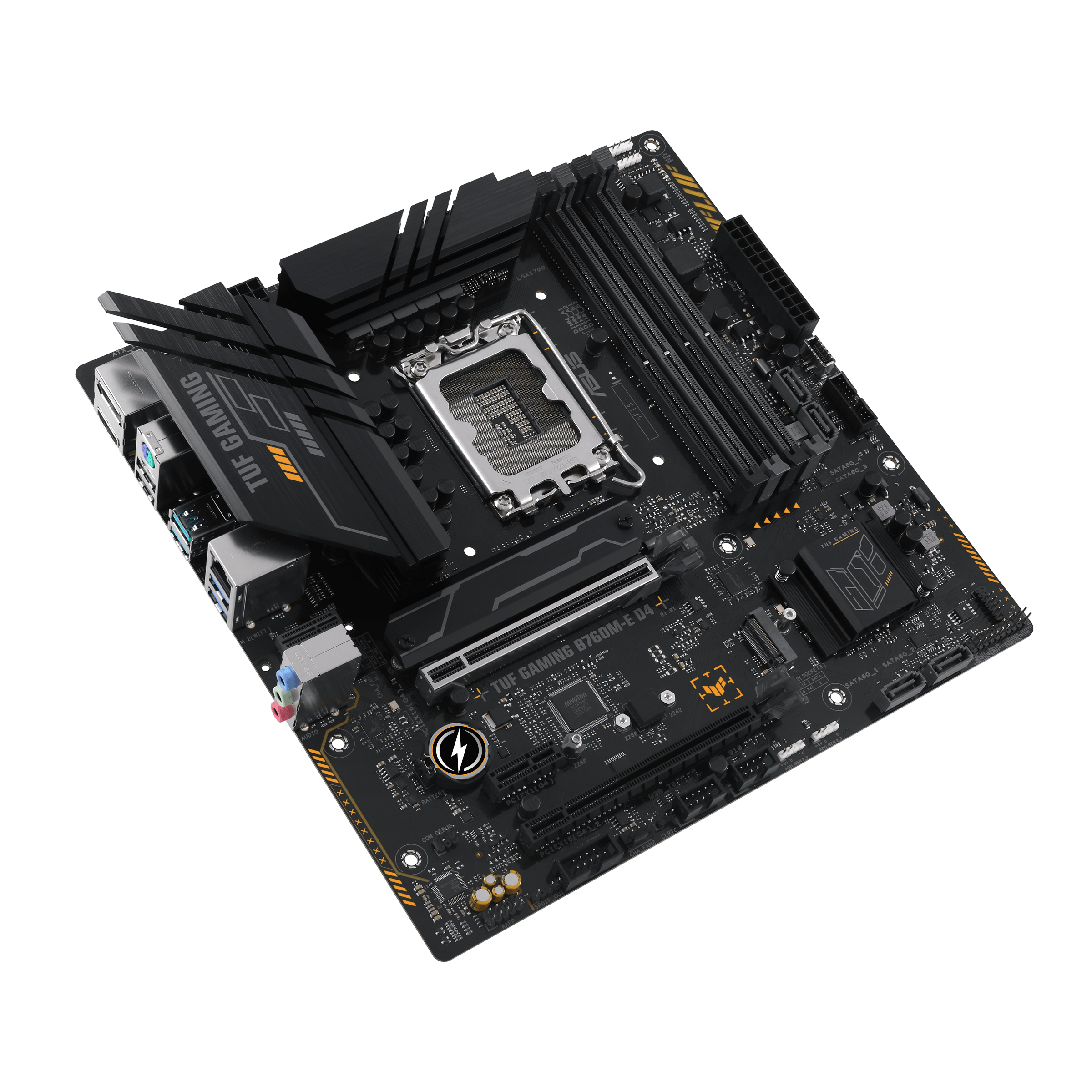

MAINBOARD ASUS TUF GAMING B760M-E DDR4

Thông tin sản phẩm

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	TUF GAMING B760M-E DDR4
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 12 và 13 Intel® Core Socket LGA1700
Chipset	B760
RAM hỗ trợ	4 x DIMM slots, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x S/PDIF Out header

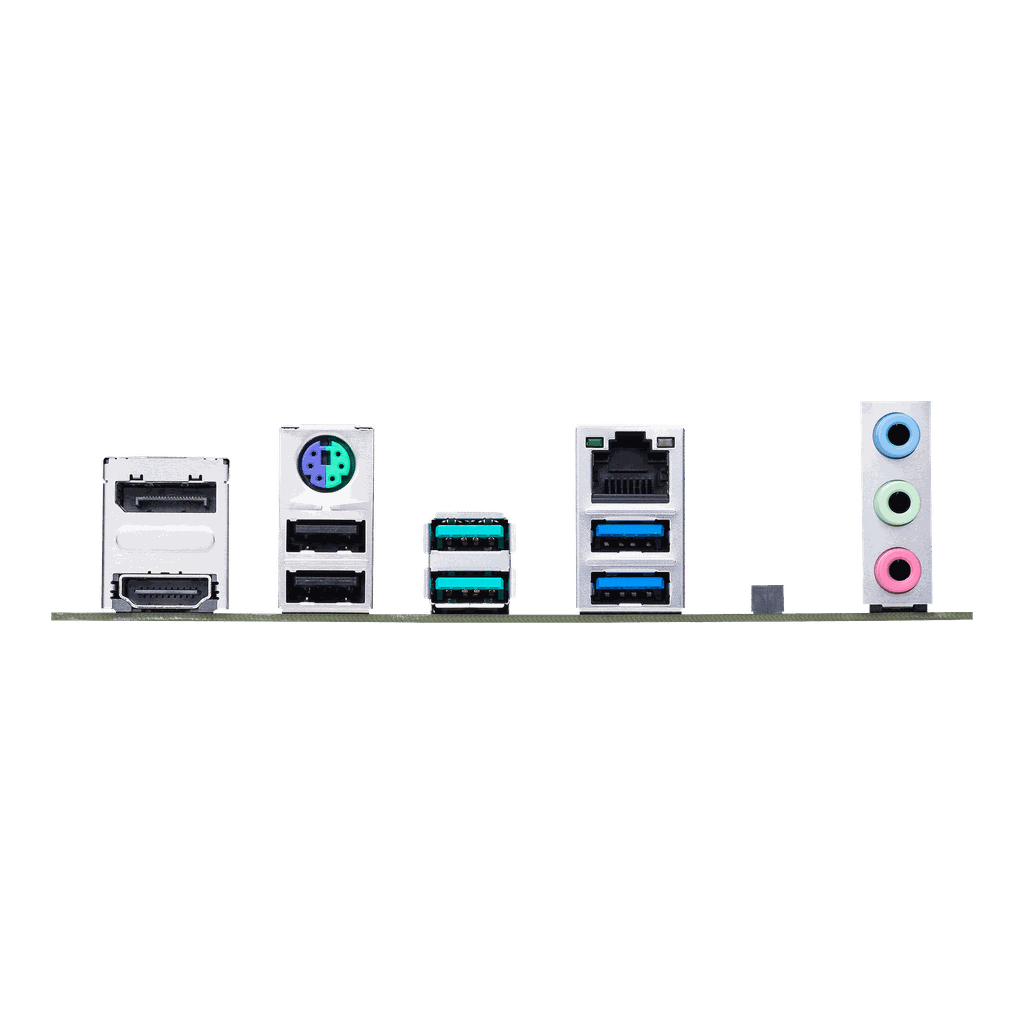

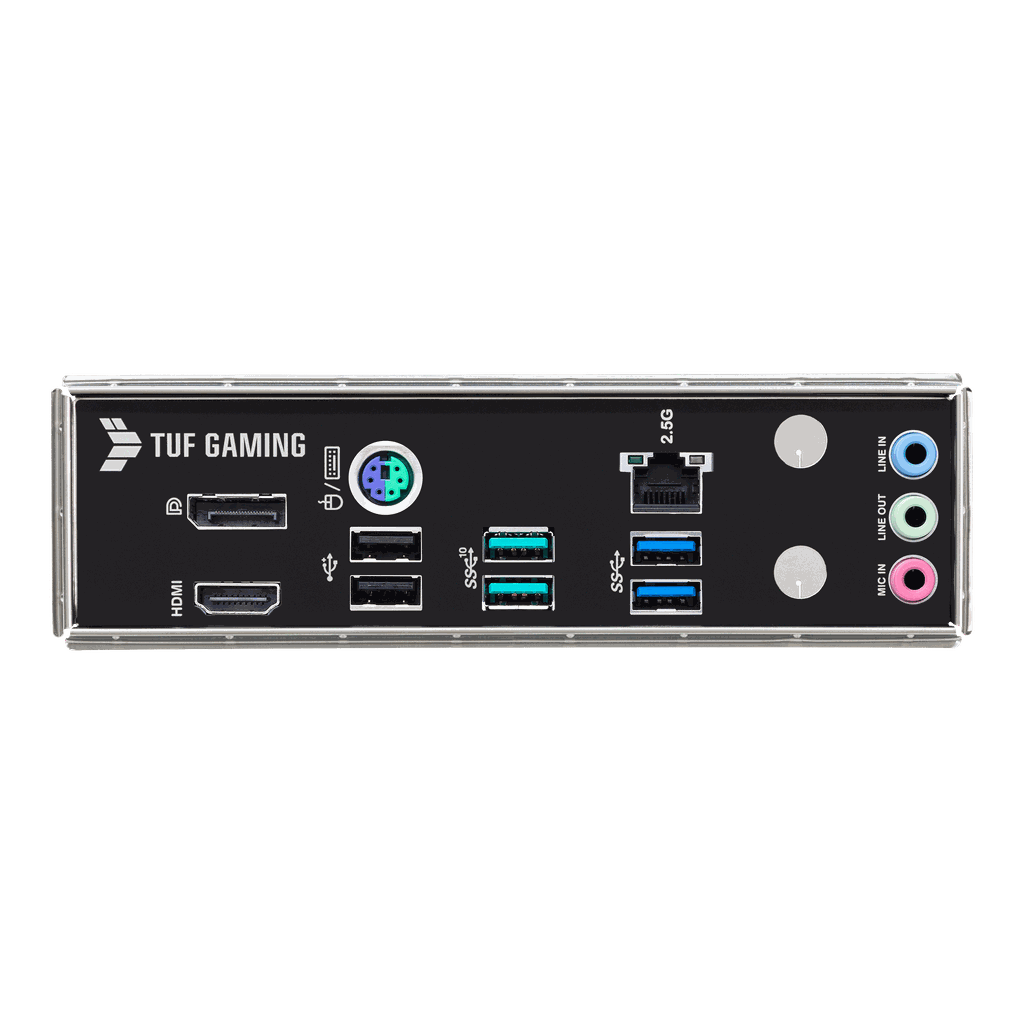

Cổng kết nối (Back Panel)	2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek2.5Gb Ethernet port 3 x Audio jacks 1 x Vertical M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Kích cỡ	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
