Đặc điểm nổi bật:
· 2 x DDR4 memory slot，Max support 64 GB
· 1 x PCI Expressx164.0@5.0，1 xPCI Expressx13.0，1 xPCI Expressx4 3.0
· 2 x M.2 2280 NVME PCIE X44.0，1 x M.2 WIFI (Support NGFF/CNVI)
· Realtek High Fidelity Audio，Realtek RTL8125BG 2.5Gbps LAN
· 1x VGA，2x HDMI2.0，1xDP1.4
· 4xUSB2.0，4xUSB3.2，1 x USB2.0 PIN，1 x USB3.2 PIN
|
Model |

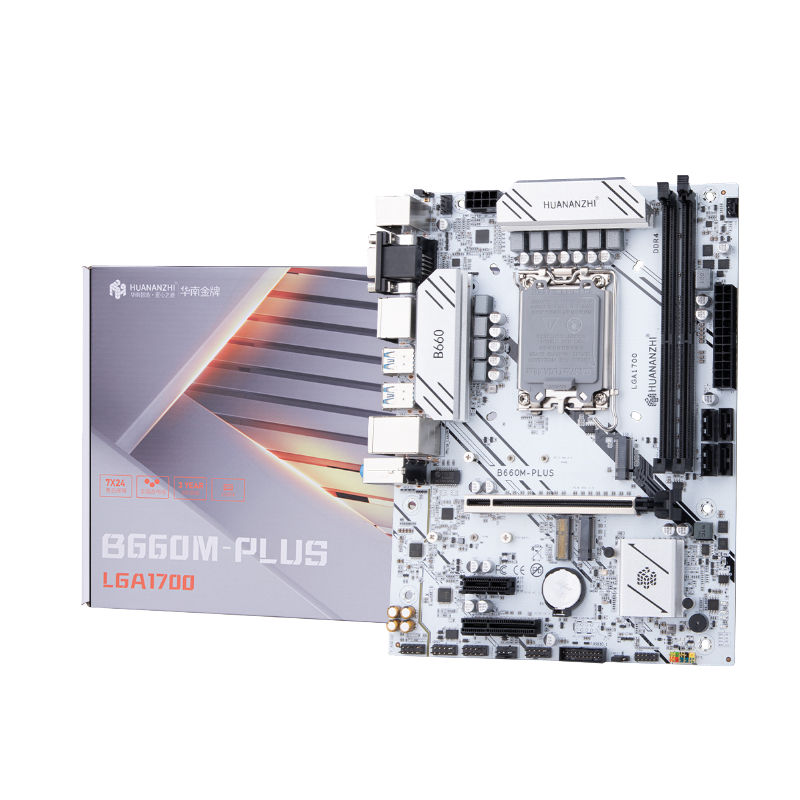

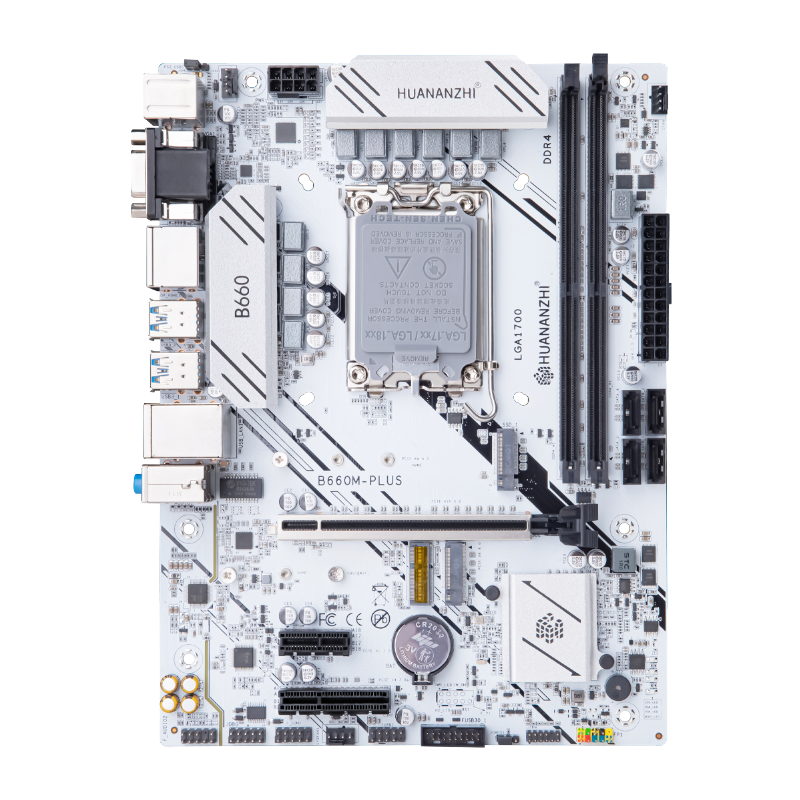

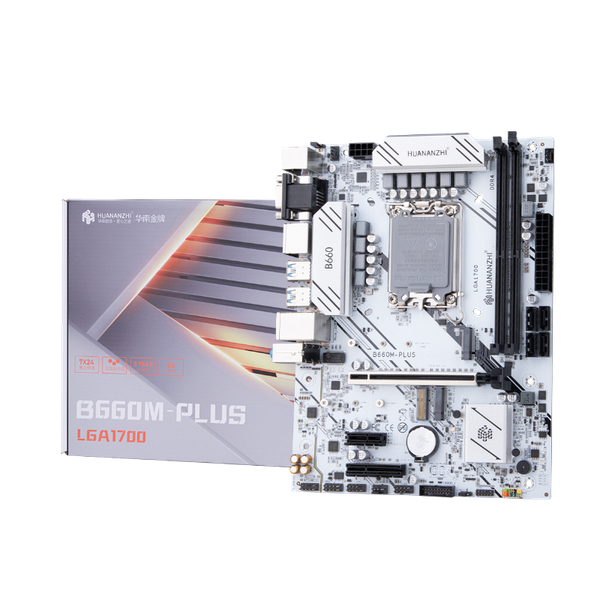

HUANANZHI B660M-PLUS Motherboard |
|
Main chipset |
IntelB660 |
|
CPU Socket |
Support Intel LGA1700 platform processor |
|
Memory slot |
2 x DDR4 memory slot |
|
Memory standard |
Support dual channels DDR4 3600/3200/2933/2666/2400/2133MHz Memory(Depends on CPU/supports XMP)，Max support 64 GB |
|
Storage interface |
4 x SATA 3.0 6Gbps（Support RAID0/ 1/ 5/ 10） |
|
Expansion Slots |
1 x PCI Expressx164.0@5.0，1 xPCI Expressx13.0，1 xPCI Expressx4 3.0 |
|
Expansion interface |
2 x M.2 2280 NVME PCIE X44.0，1 x M.2 WIFI (Support NGFF/CNVI) |
|
Soud Track |
Realtek High Fidelity Audio |
|
Network Card |
Realtek RTL8125BG 2.5Gbps LAN |
|
Power interface |
24PIN+8PIN |
|
FAN PIN |
1xCPU_FAN PIN，2xSYS_FAN PIN |
|
power supply |
10-phase power supply |
|
PCB layers |
6-layer PCB |
|
Dimension |
240*180MM M-ATX |
|
Rear panel interface |

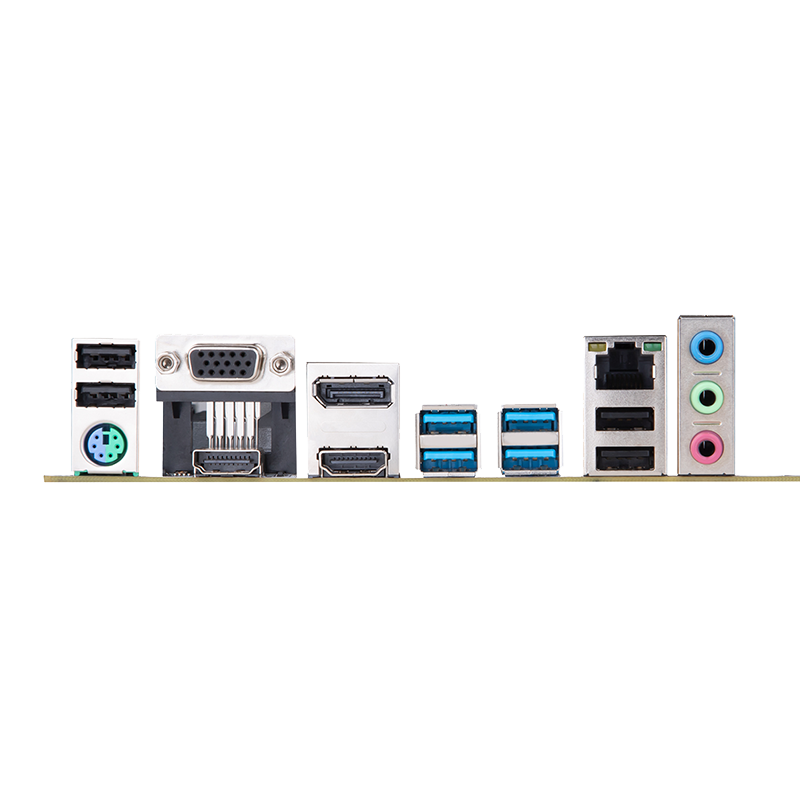

1xPS/2 Mouse and Keyboard port，4xUSB2.0，4xUSB3.2，1xRJ45Network card interface，1x3-hole audio interface 1x VGA，2x HDMI2.0，1xDP1.4（Support processor core display four-screen output） |
|
Front panel interface |
1 x USB2.0 PIN，1 x USB3.2 PIN，1 xFront audioPIN，1xCOM PIN，1 x Debug indicator，1 xPower on/restart PIN，1xMotherboard buzzer，1 xTPM2.0 |
|
Support system |
Windows10 Windows11 |
|
BIOS |
AMI UEFI BIOS |
|
Packing list |
1 x Motherboard，1 x SATA data cable，1xWarranty card，1xI/O shield back plat |
