| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASROCK |

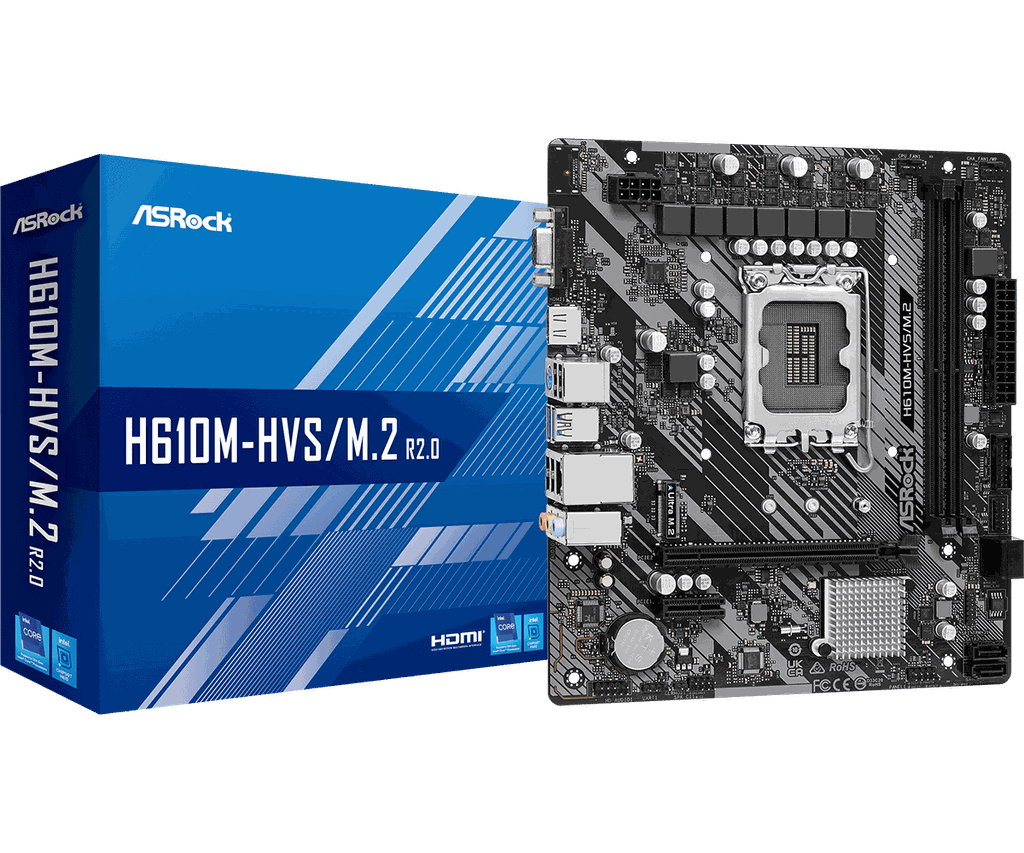

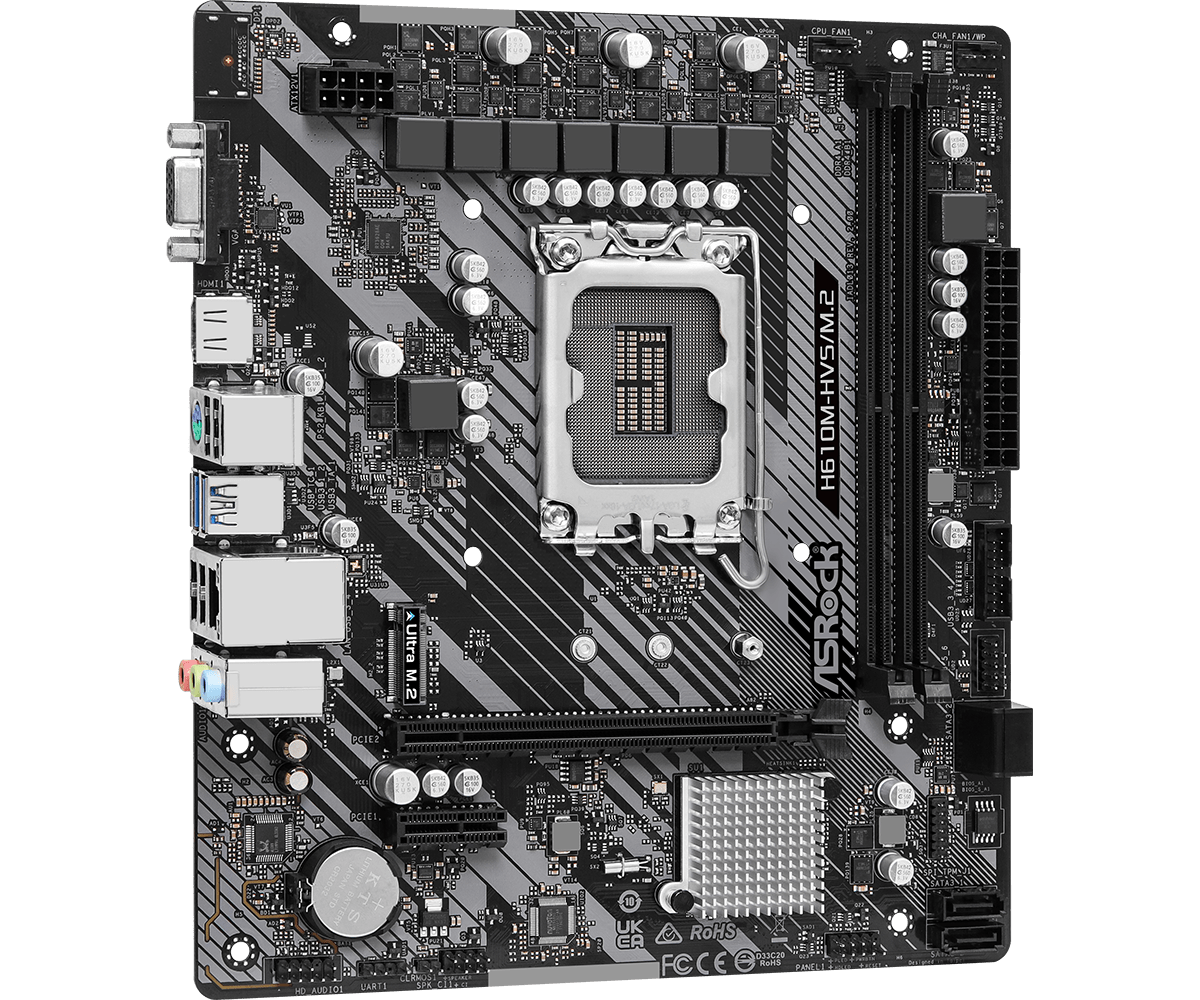

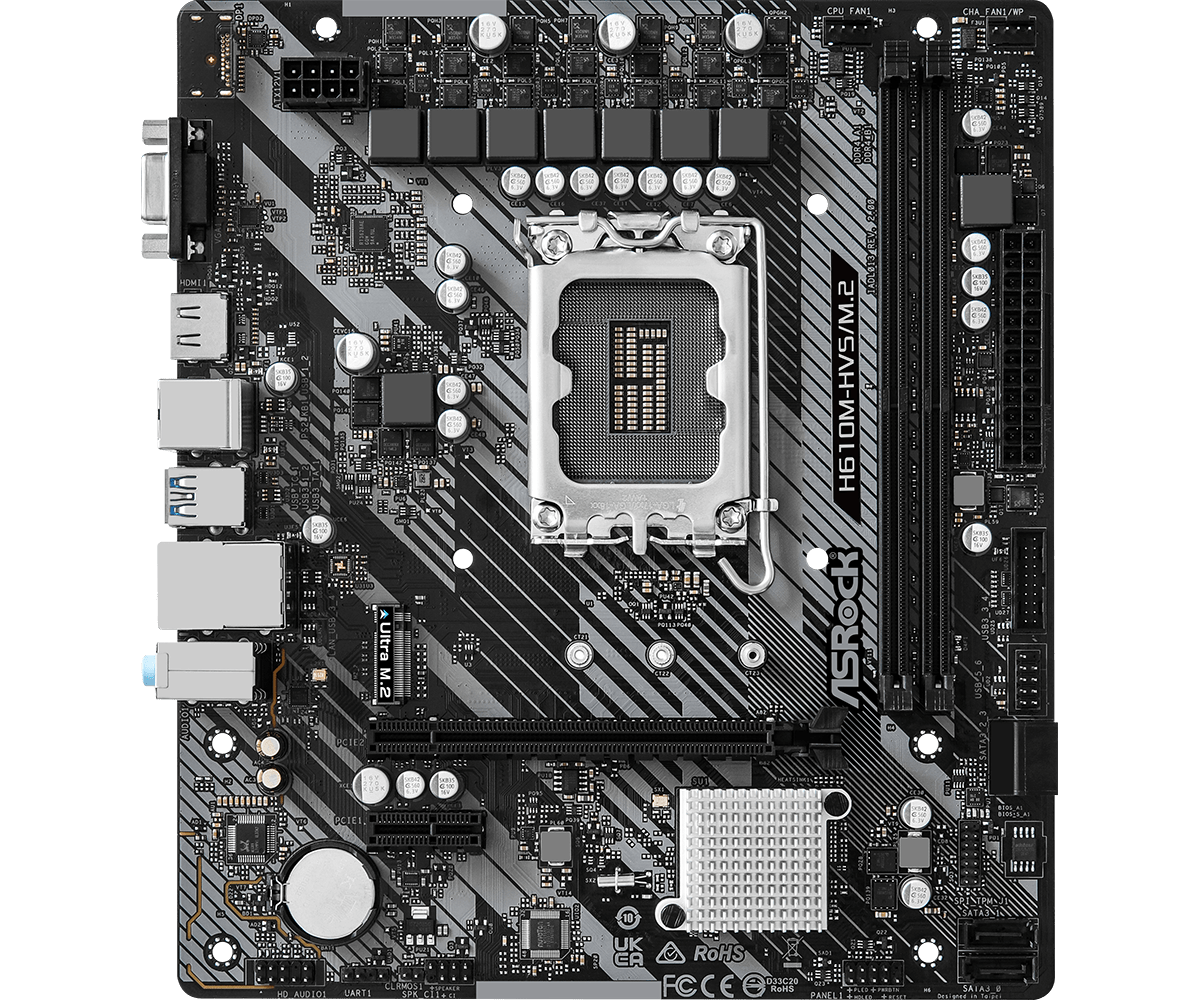

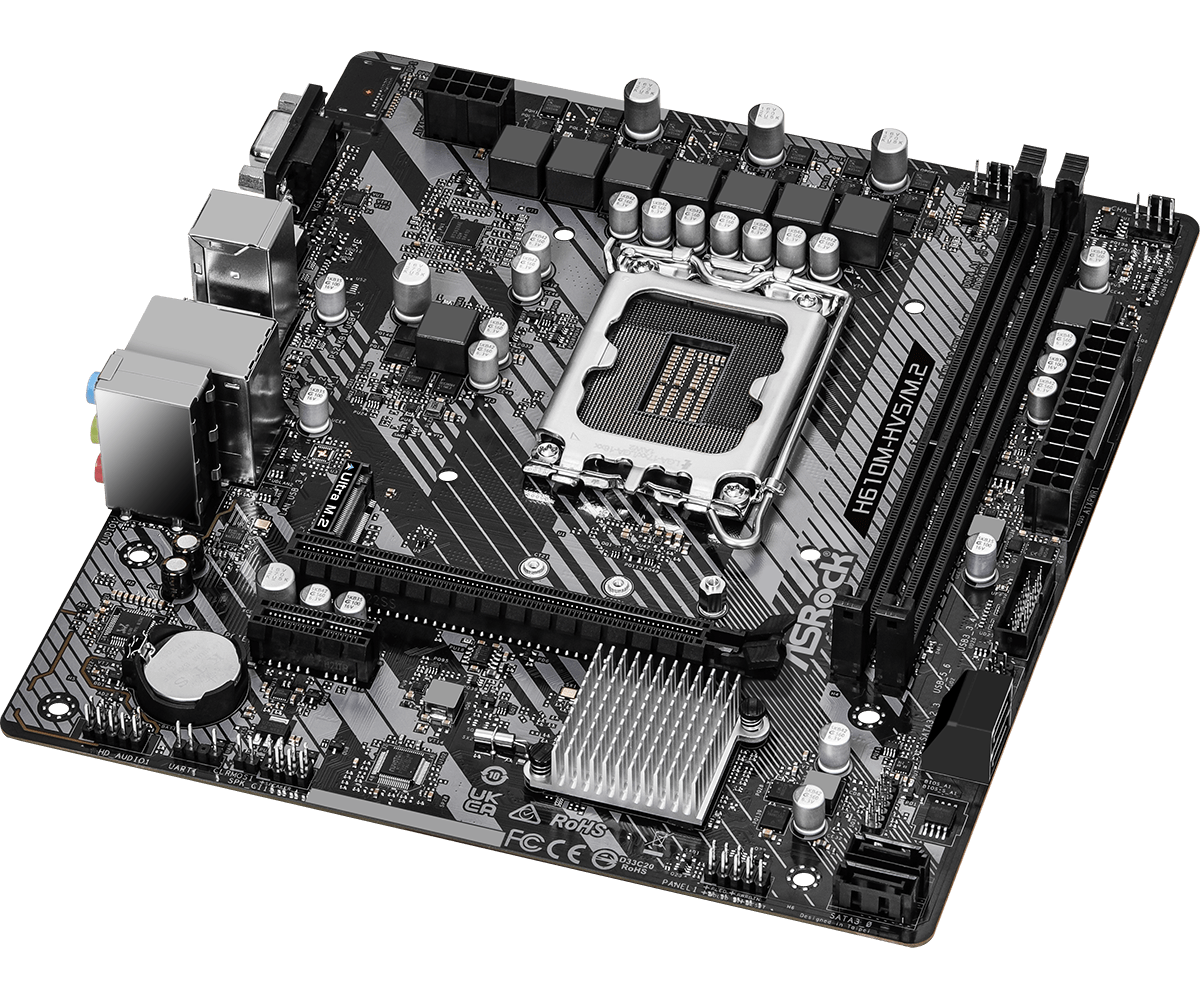

| Model | H610M-HVS/M.2 R2.0 |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 12 và 13 Intel® Core Socket LGA1700 |
| Chipset | H610 |
| RAM hỗ trợ | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Khe cắm mở rộng | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1) |
| Ổ cứng hỗ trợ | Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Cổng kết nối (Internal) | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

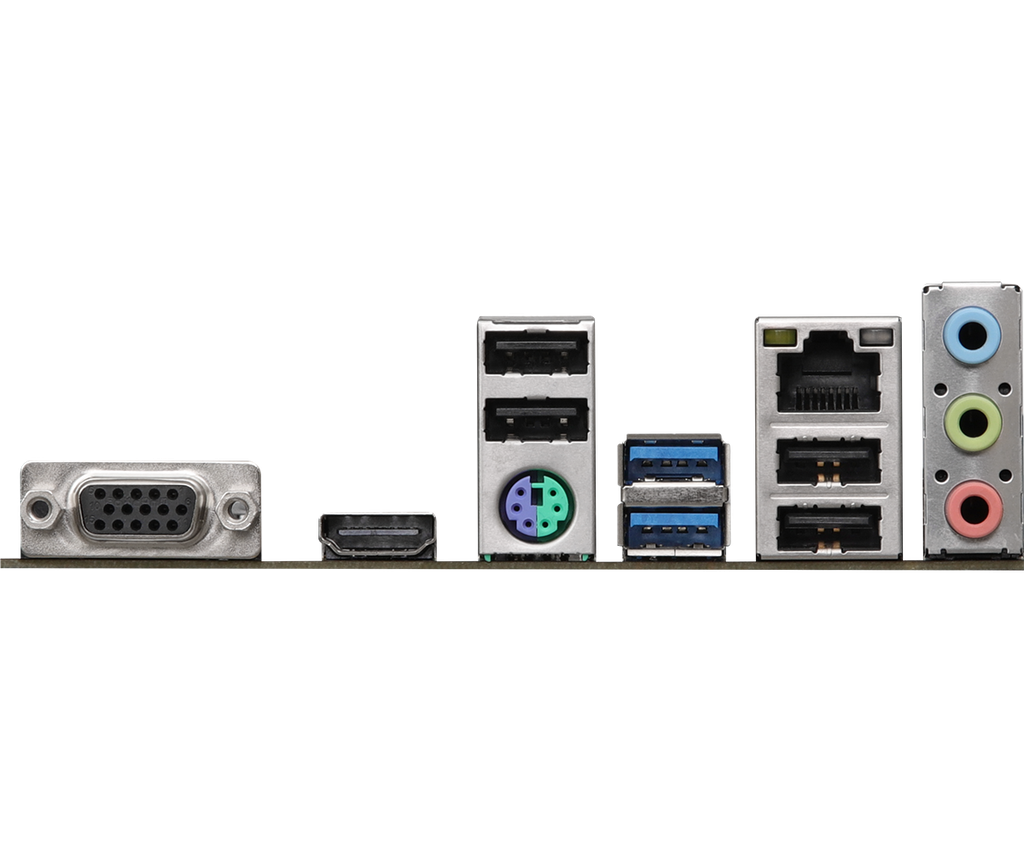

| Cổng kết nối (Back Panel) | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 4 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x Realtek RTL8111H |
| Kích cỡ | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
