Model |

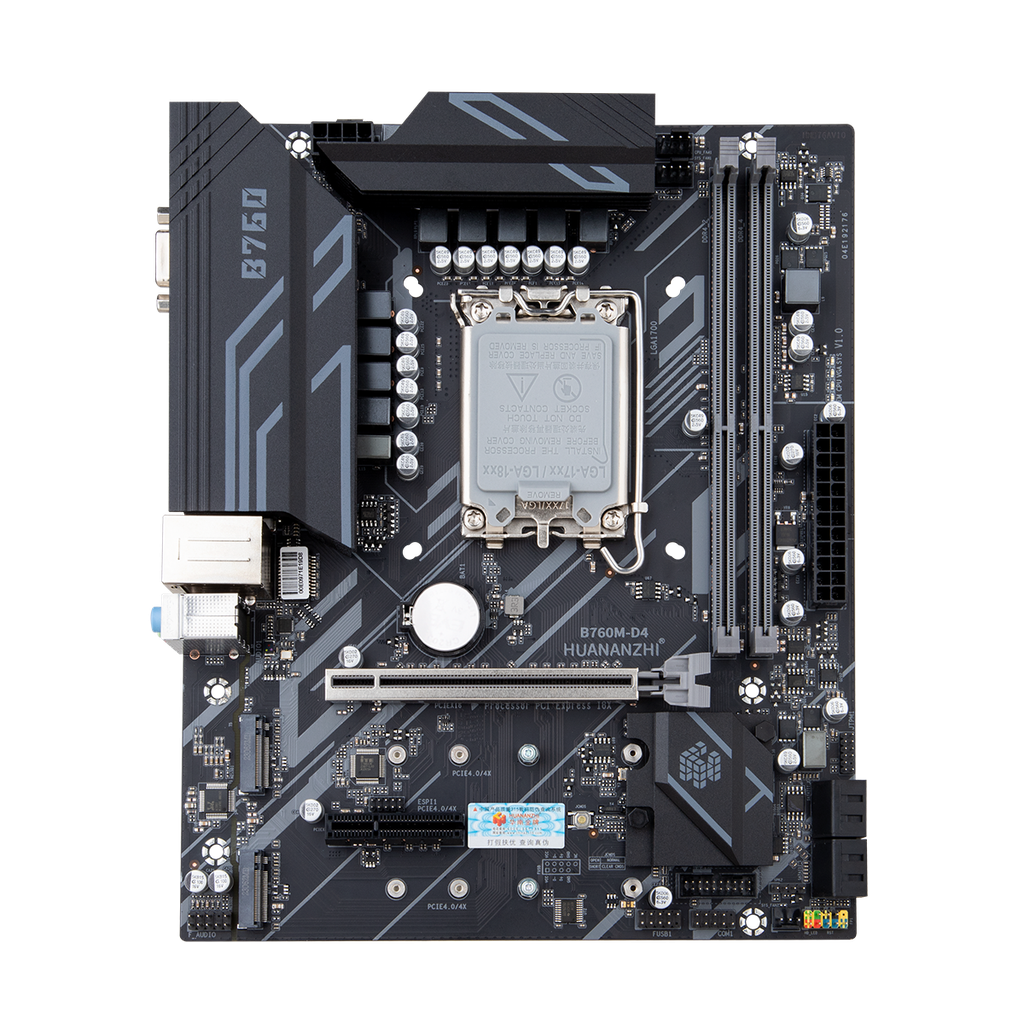

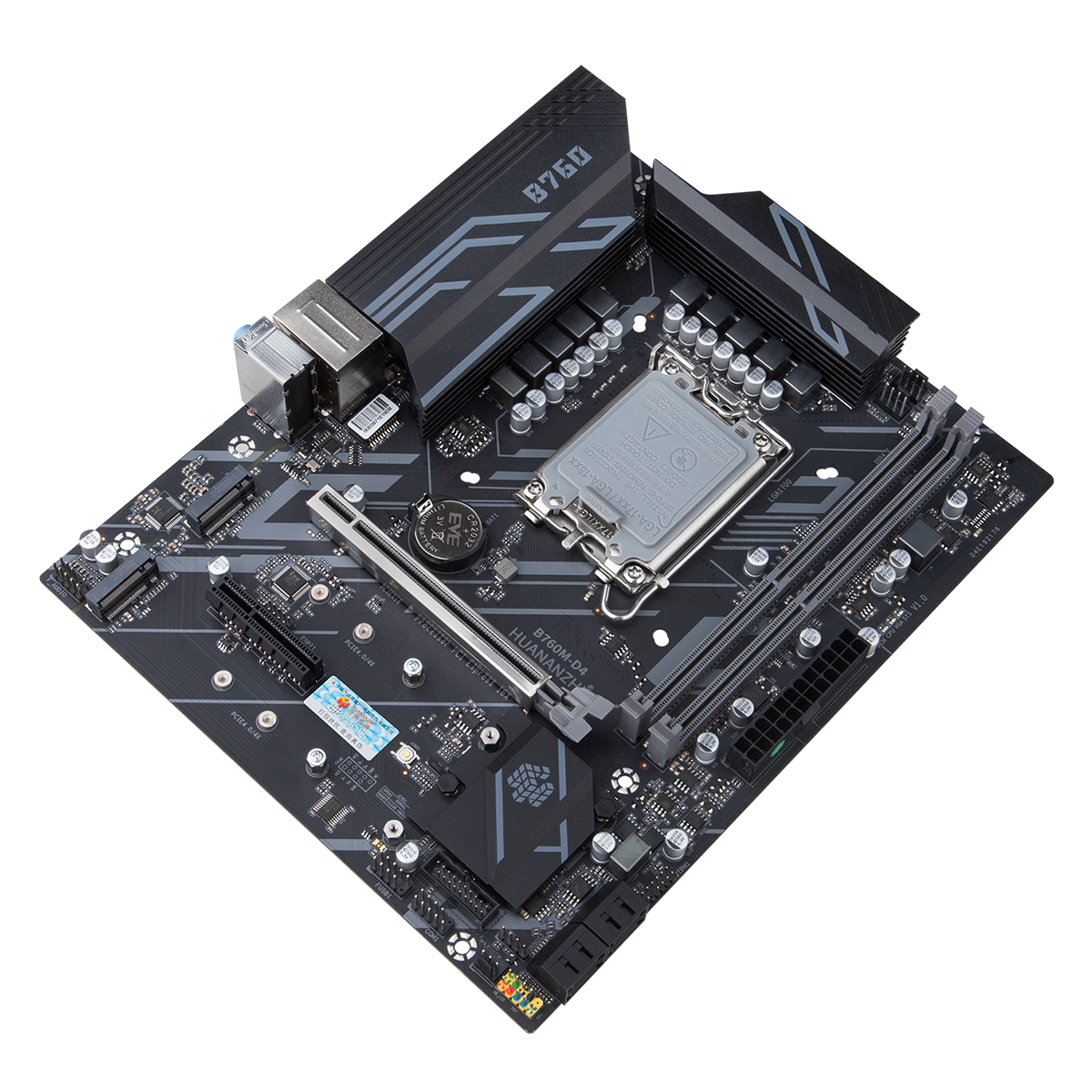

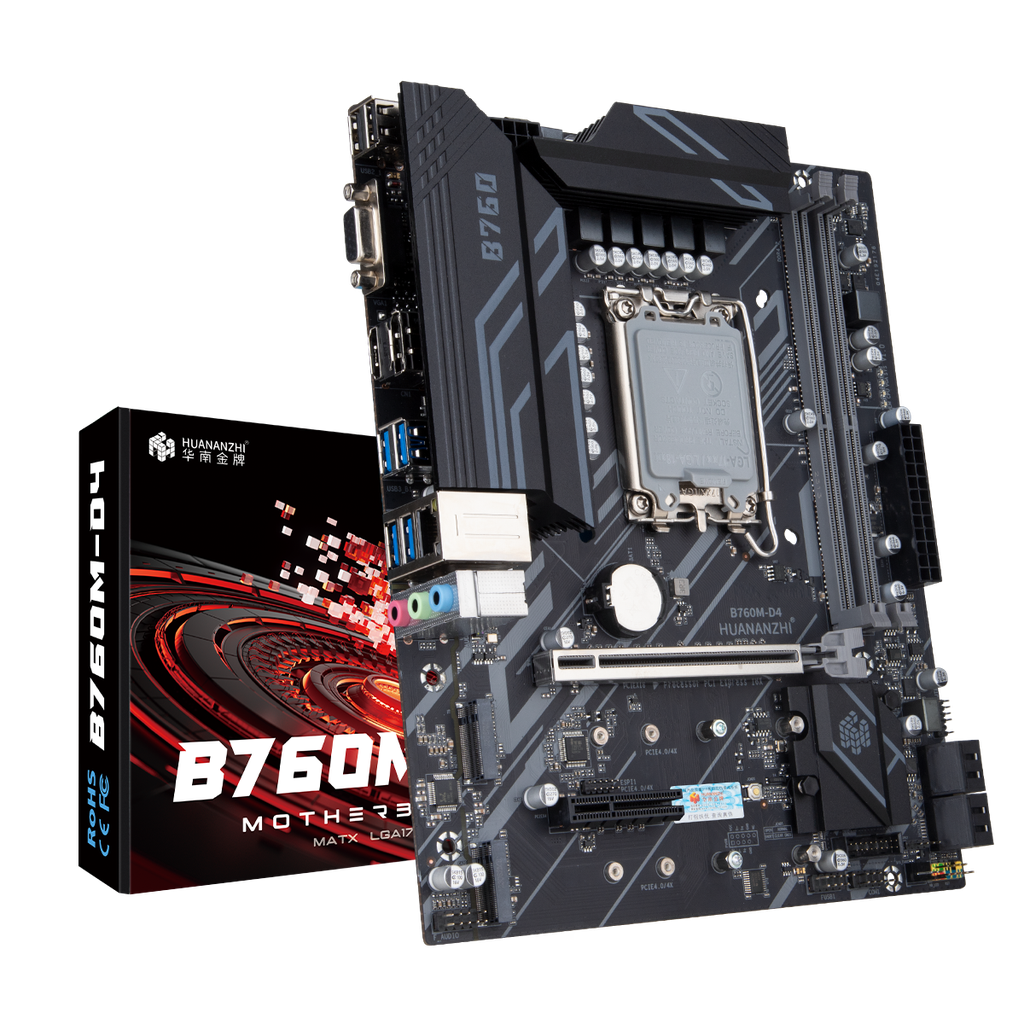

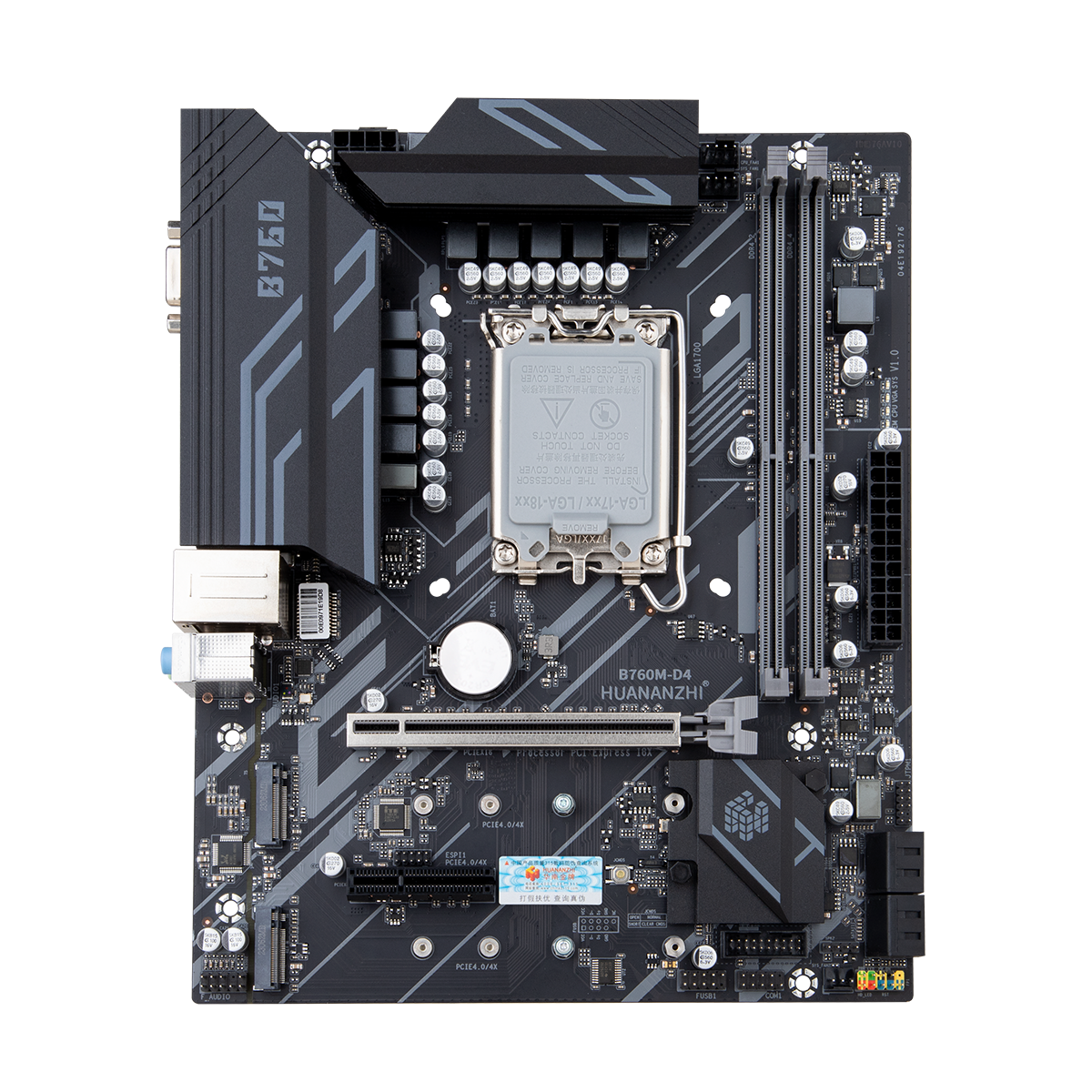

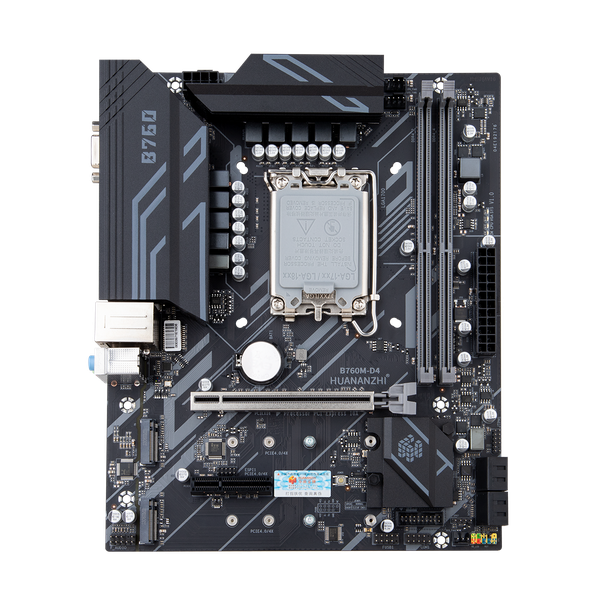

HUANANZHI B760M-D4 Motherboard |
|
Main chipset |
Intel B760 |
|
CPU Socket |
Support Intel LGA1700 |
|
Memory slot |
2 x DDR4 memory slot |
|
Memory standard |
Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent)，Max support 64GB |
|
Storage interface |
4xSATA3.0 6Gbps interfaces |
|
Expansion Slots |
1xPCI Expressx16 4.0，1xPCI Expressx4 4.0 |
|
Expansion interface |
2xM.2 22110 NVME PCIE X4 4.0 |
|
Soud Track |
Realtek High Fidelity Audio |
|
Network Card |
Realtek Gigabit Network Card |
|
Power interface |
24pin+8pin |
|
FAN PIN |
1xCPU_FAN PIN，2xSYS_FAN PIN |
|
power supply |
10-phase power supply |
|
PCB layers |
6-layer PCB |
|
Dimension |
235*195MM M-ATX |
|

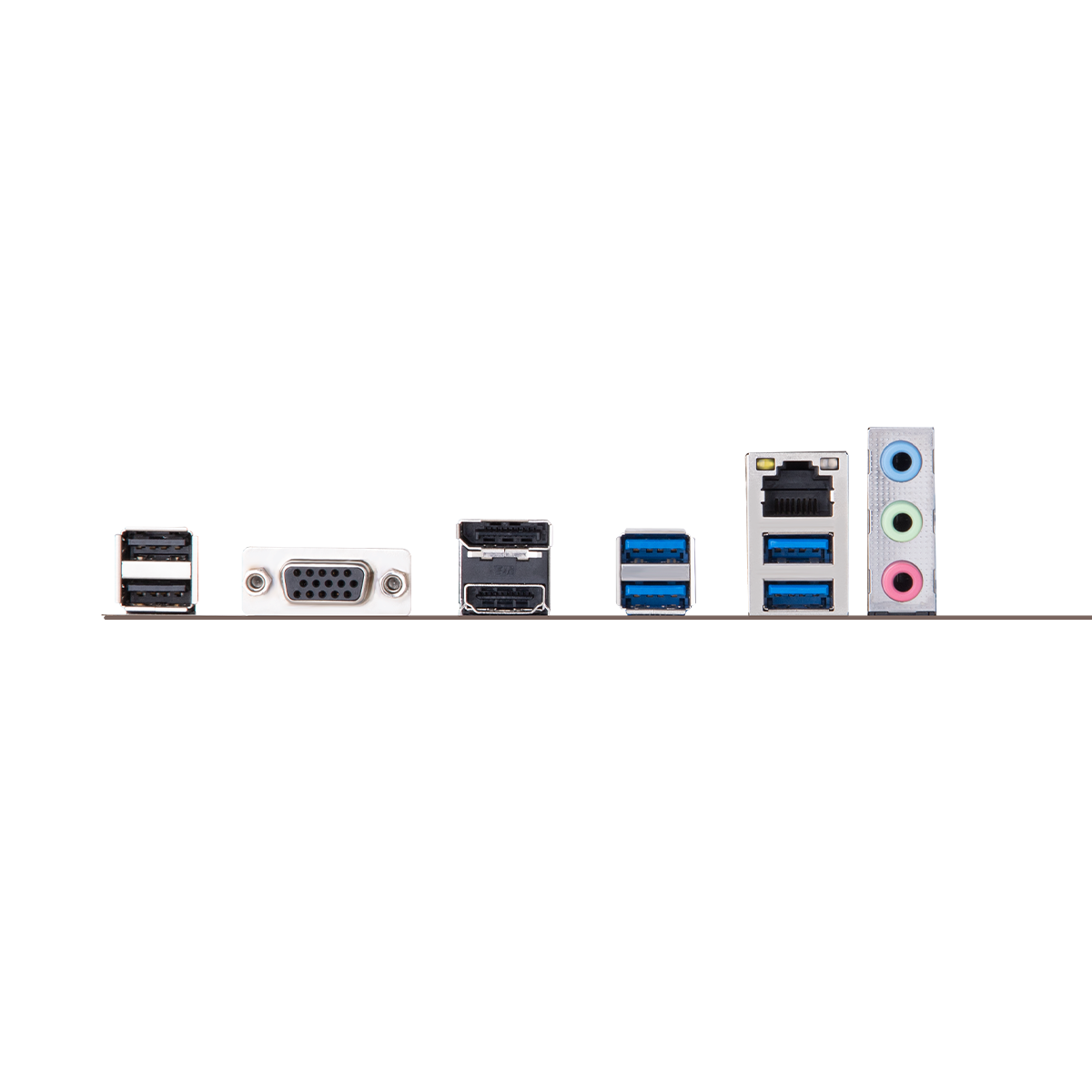

Rear panel interface |
2xUSB3.2 Gen2 10Gb/s，2xUSB2.0 480Mbps，1xVGA，1xHDMI2.1，1xDP1.4 ，1x Network card interface，1x3-hole audio interface |
|
Front panel interface |
1 x USB2.0 PIN 480Mbps，1 x USB3.2 PIN Gen1x15Gb/s，1 x Front audio PIN，1 xCOMPIN，1x Debug pin |
|
Support system |
Windows10 Windows11 |
|
BIOS |
AMI UEFI BIOS |
|
Packing list |
1 x Motherboard，1x SATA data cable，1xWarranty card |
